10pc Socket Set - 1/2in.Dr
For special automotive applications -
With 3 | 6 and 10 Point Sockets and
10mm | 12.5mm | 14mm | 19mm Pentagon Sockets

Torque Multiplier Set for Ford EcoBoost Engines
This torque multiplier set allows the correct mounting position and
correct tightening sequence to be applied to the crankshaft pulley bolts.
The torque multiplier has a gear ratio of 1:5.
The torque multiplier has a 1/2in.Dr input and 3/4in.Dr output.
The tool is mandatory when working on the following Ford engines :
1.0 EcoBoost
1.0 / 1.1 Duratec
2.0 Duratorq-TDCi
2.0 EcoBlue Diesel.

Adjustable Pin Wrench Set
with Interchangeable Pins
for nuts with top holes as found on Wheel Pulleys.
Divider type adjustment with central knurled knob.
Supplied with 8 pins / 4 pairs.
Pin size : 2.5 - 4mm | 3 - 5mm | 6 - 8mm | 7 - 9mm.
Plus 10 / 11mm Spanner.
Suitable for DIN 547 bearing nuts.

Cambelt Tension Gauge
Precise Measurement
Universal - Suitable for Cambelts of various widths
Dual Direction Rotating Scales with Clear Incremental Markings

Volvo Camshaft Belt Tool Kit
Used for the replacement of the camshaft drive belt
on popular Volvo 2.0L and 2.5L - 5 cylinder diesel engines.
Like - C30 | C70 | S40 | S60 | S80 | V40 | V50 | V60 | V70 | XC70 range.
With Crankshaft Pulley Holding Tool
Camshaft and Crankshaft Locking Pins

Belt Installation Tool
For Restricted Access to V style Timing Belts
600mm Reach

VAG Cambelt Pulley Holder
For VW 1.4 / 1.6 / 2.0 litre engines
Also for 4 valve engines with pin diameter 11.5 mm
and counter holding the belt pulley of 2 valve engines.
Applicable to : Audi / Skoda / VW vehicles

Timing Belt Tension Setting Tool Kit
for engine compartments with restricted access.
Ideal for releasing tension on serpentine belts.
Suitable for most vehicles.
3/8in.Dr x 580mm Long with 1/2in.Dr extension
3/8in.Dr Crowfoot Wrenches : 13 | 14 | 15mm
3/8in.Dr Sockets : 15 | 16 | 18mm

5pc Cambelt Tension Pulley Wrench Set
E-Star Sizes : E10 | E12 | E14 | E16 | E18
For biasing the auxiliary belt tension off and on
during installation of the belt in the vehicle.
Slim curved handle for use in confined spaces.

15pc Cambelt Tension Wrench Set
With Interchangeable Heads
for tensioners on auxiliary and timing pulleys.
Includes bar with locking system.
Star : E10 | E12 | E14 | E16 | E18
Sizes : 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19mm

9pc Cambelt Tension Wrench Set
with Interchangeable Heads
For tensioners on auxiliary and timing pulleys
Sizes : 12 to 19mm
Includes bar with locking system.

6 Belt Tensioner Retaining Pins
For use on Automatic Belt Tension Systems in vehicle engines.

1/4in.Dr Timing Belt Extension Tool
Range 8mm - 25mm
With 3mm Chrome-Vanadium Pins

Universal Camshaft and Crankshaft Pulley Holder
Holds camshaft or diesel pump sprockets and gears
for removal and tightening of retaining bolts.
Interchangeable pins : 3.5 | 4 | 4.5 | 5 | 6 | 7 and 10mm.
Wrench swivels to adjust from 32 - 127mm
1/2in.Dr for use with ratchets or power bars.

Citroen / Peugeot Petrol Engine Camshaft and Crankshaft Seal Installer Kit
Citroen / Peugeot Petrol 1900-2000

VAG Camshaft Adapter Socket
3/8in. Drive / S45C Steel.
Use to rotate and hold the intake camshaft during timing chain service
on 4 cylinder 1.8L and 2.0L TFSi generation III direct injection engines.

Camshaft Belt Pulley Tool

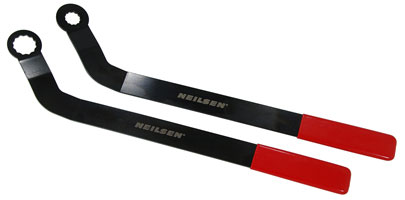

Mini Cooper Serpentine Belt Tool - R50 / R53
For loosening the camshaft pulley then using the
pin to lock the camshaft pulley tensioner in place
allowing the removal and replacement of the timing belt.
Applicable : BMW Mini Cooper - R50 / R53
BMW engine W10/W11

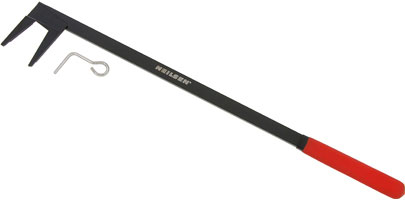

Camshaft Belt Pulley Tool
Mini Cooper Serpentine Belt Tool
For loosening the camshaft pulley then using the
pin to lock the camshaft pulley tensioner in place
allowing the removal and replacement of the timing belt. br> Applicable : BMW Mini Cooper engine S/W11

Exhaust Camshaft Holding / Adjusting Tool
for EB2ADTS Engines in
Citroen / Opel / Peugeot / Toyota Vehicles
Suitable for the following engine codes:
EB2ADTS | HNS | D12XHT | F12XHT
OEM Codes : 2000037072
0109-2E / 0109-2E1 | 01092E / 0109-2E2

5pc Master Cam Clamp Kit
This universal kit reduces repair time and covers
most Single / Twin and Quad cam engines.
Locks camshafts during belt replacement.
Prevents engine damage due to incorrect timing.
Allows easy operation in small engine bays.

Camshaft Locking Tool
for Audi | Ford | Seat | Skoda | Volkswagen | Volvo
Essential for setting and locking the camshaft
and crankshaft when changing the timing belt.
Includes :
Setting spigot OEM ref.23-047/2064
Setting bracket OEM ref.21-105/2065A

VW R2/T4/A3 Camshaft Pulley Puller
Ideal for removing rusted or seized pulleys.
For in-situ car maintenance.
Adjustable legs fit different diameters of pulley.
VW T4 use six hook
AUDI A3 use five hook
R2 use six hook

Universal Pulley Puller
18mm pulling legs.
8 Slots for holding pulling legs in different positions.
16mm Diameter spindle with cantering ball.
Use with 24mm Socket or Spanner.
Draws pulley by the holes without causing damage.
Movable legs adapt to different pulley diameters.
Suitable for different bolt patterns and distances.

Adjustable Timing Pulley Puller
This tool is designed for removing drive pulleys with face grooves.
Removes pulleys without risk of damage.
Adjustable Legs for different pulley diameters.
For removing pulleys with 3 | 6 | 9 slots.

BMW Camshaft Vanos Socket
22mm / 16pt / 1/2in.Dr
For installing and removing the BMW MINI Vanos unit.
Also the Ford VCT module.
Applicable to : BMW MINI 1.2 / 1.5 / 2.0 L petrol
B36 | B38 | B48 | B36 | B38 | B46 | B48 | B58
M1DA | M1DC | M1DD | M1DH | M2DA | M2DB | M2DC
Ford 1.0 Ecoboost / SFDB.
OEM Codes : 2450487 | 303-1661-3
Chrome-Molybdenum

High Pressure Pump Sprocket Remover
For removing the diesel fuel pump sprocket on
Hyundai and KIA chain drive CRD diesel engines
found on 1.1 | 1.4 | 1.5 | 1.6 | 1.7 litre models.
OEM Code : 09331-2A000

VAG Fuel Pump Sprocket Puller
For the removal of the high pressure pump sprocket.
on 1.6L and 2.0L TDi common rail diesel engines.
Also for removing the Pump Pulley on
1.6 / 2.0 - 6 cylinder TDi common rail diesel engines
OEM Code : T40064

12pc TDC Locator / Finder Set
For the accurate setting of the TDC point during timing belt
replacement or cylinder head disassembly or seal replacement.
Contents :
Hose
Hooks with Magnet
Measuring Pipe
3 x Lengthener with Connection Pipe
6 x Adaptors : 8 | 10 | 12 | 14 | 18mm diameter and Cone Adaptor
Features an aluminium extension for use in deep ignition chambers.

Timing Gear Puller
Removes Timing Gears and other gears with tapered holes

Engine Timing Light Gun
For checking and adjusting the ignition timing.
Suitable for all 12V petrol engines where it is possible to adjust the ignition timing.
Ignition signal via cable of first cylinder.
Bright stroboscopic light allows good readability of the ignition timing mark.
Features include xenon bulb and inductive pick-up.
Impact resistant housing with on / off trigger

Timing Light with Digital Display
Voltage : 12V / 10W.
Stroke select function.
Test rotation speed and advance angle.
Max Test Angle : 90 degrees
Precision : 0.1 degrees

BMW / Mini Camshaft Drive Chain Wear Indicator
For checking the timing chain stretch on BMW Mini petrol engines
without dismantling the engine.
Applicable to Mini Clubman / Club Van / Countryman / Coupe
Paceman and Roadster with 1.4L and 1.6L engines.
Also useful on equivalent PSA engines.
OEM Code : 2353281

16pc Universal Timing Tool Set
with Camshaft / Crankshaft Locking Tools
for Diesel and Petrol Engines.
Suitable for carrying out timing belt servicing on :
Audi / Citroen / Fiat / Ford / Isuzu / Peugeot / Rover / Saab / Seat / Skoda / Vauxhall / VW

19pc Universal Timing Tool Set
For Locking and Setting Timing when replacing timing belts
Camshaft Lock
Crankshaft Pin & Locking Tool TDI Pump Nozzle
Flywheel Locking Tool
Locking Pins : 5.0mm diameter
Locking Pin : 6.1 mm diameter
Balancing Shaft Locking Pin : 7.3mm / 6.1mm diameter
Suitable for most vehicles

Universal Twin / 4 Cam Lock
For Petrol and Diesel Engines
Locks twin camshafts to timing marks during timing belt replacement
Suitable for locking between cam and diesel injection Pump sprockets

Sonic Belt Tension Tester
Portable Flexible Probe Tester
Frequency Range : 10 - 600Hz
Includes 20 Memory / Data Storage Settings.
Automatic Power-off when no operation for 5 minutes.
Power off by pressing ON / OFF switch for 2 seconds.
Power Source : 2 AAA battery / not included.

BMW Timing Tool Set
BMW Engine Camshaft Alignment Tool Kit
To enable the correct timing when servicing
N40 / N42 / N62 / N62TU / N73 engines with dual camshafts.
Gauges for locating camshaft in TDC position
Pin for locking flywheel in TDC position

Fiat / PSA 1.3 JTD Diesel Engine Camshaft Tool
For use on the popular 1.3 JTD Multi-Jet diesel engine
found in Fiat Group / Ford / GM and PSA vehicles.
Used to hold the camshaft while loosening or tightening fixings.
Designed to be used with a 1/2in.Dr ratchet or power bar.
Recommended for use with CT4058 Timing Tool Kit
OEM Codes : 303-1475 | 1871008600

Timing Belt Tensioning Tool
Universal Tensioner for a simple way to tension the timing belt
on GM engines fitted to Alfa Romeo / Fiat / Lancia / PSA / Saab and Suzuki.
Applicable to 1.6L / 1.9L / 2.0L / 2.4L diesel vehicles.

Ford Camshaft Sprocket Puller
Size 90 x 65mm
Applicable to - F8M | F8Q | S8U | S9U
Also suitable for removing the Impeller.
Also found in Timing Tool Set CT3429

Ford Rear Camshaft Pulley Installation and Removal Kit
for Ford and Mazda V6 Engines
Specifically for removing and reinstalling the rear camshaft pulley
which connects to the water pump during servicing.
Applicable to : Ford / Mazda 2.5L | 3.0L V6 engine.

Camshaft Setting Bridge
for 1.0 Wet Belt Non Turbo / Ford Petrol
Application : Ford Fiesta from 2013.
Engine codes :
P4JA | P4JB | P4JC | P4JD | XMJA | XMJB | XMJC | XMJD.
OEM Code : 303-1605
Use with components from any of CT7206.

Variable Camshaft Sprocket Locking Tool
for Ford 1.5L Sigma i4
For locking the two camshaft sprockets together
when setting the engine timing.
Suitable for :
Ford Escape equipped with 1.5L EcoBoost
132kW/180PS / i4 - M9 model years 2017, 2018, and 2019.
Ford Fusion equipped with 1.5L EcoBoost
118kW/160PS / i4 - UN Model Years 2013 up to 2020.
OEM Code : 303-1774

Ford Camshaft Setting Tool
for Ford 1.6L EcoBoost Petrol Engines.
For locking the camshaft when servicing the timing chain.
Applicable to the Sigma 1.6L EcoBoost 2010 onwards.
OEM Code : 303-1552

Hyundai / Kia Belt Tension Compression Tool for Hybrid Vehicles
Essential tool for compressing the very tight belt tensioner
on the hybrid starter generator / HSG.
With compression control tube preventing
1.6L GHEV engines to be over compressed.
Applicable Vehicles :
Loniq / Kona / Niro / Optima / Xceed | 1.6L - 2.0L Models
OEM Codes : 09244-G21000 | 9252-2E100.

4pc Camshaft Adjuster Set
for Mercedes V6 / V8 - M152 / M157 / M276 / M278 Vehicles
Camshaft Position Sensor Reluctor Setting Tools
Used to mark pulse wheel on removed camshaft.
Can be used in conjunction with CT4076
OEM Code : 278589002300

Vauxhall / Opel / GM / Saab Timing Tool Set
For 2.0 | 2.4 Turbo Charged Twin Cam Petrol Engines.
Timing Chain removal and replacement kit with -
Camshaft Adjuster and Flywheel Holding Tool
Tension Plunger Reset Tools
Used in Chevrolet / Opel / Saab / Vauxhall vehicles 2008 - 2015

Cam Belt Tensioning Tool
T50 Star Bit - 1/2in.Dr
Allows access to the tensioner adjuster on
Renault K4M / K4J 1.4 and 1.6 petrol engines.
May be used with 1/2in.Dr Adaptor and Ratchet
OEM Code : MOT1368

Camshaft Sprocket Locking Timing Tool Set
for Renault 1.8 / 2.0 F4 16V Vehicles -
Laguna II / 2001 - 2009
Megane II / 2002 - 2009
Scenic / 2002 - 2009
Engine Codes : F4P | F4R
OEM Codes : MOT1509-01 | 1509.

VAG Camshaft Adjuster Sockets - 3/8in.Dr
For the camshaft adjustment of 4/3-way central valve.
Fitted to : Audi A3 | A4 | A5 | Q5 1.8
and VW 2.0 litre engines with chain drive
