Brake Servicing
CT5550
Fluid Lock Set - 3pc
3pc Fluid Lock Set
Size range : 4.2mm - 10mm.
Three anodised aluminium bodies with composite screw.
For Clamping and sealing metal flared pipes on braking systems
also cooling system bypass / fuel pipes and AC pipes etc.
Provides an effective seal to metal brake pipes when the braking system has been opened.
Size range : 4.2mm - 10mm.
Prevents brake fluid loss and contamination of the work area.
CT4759
Brake Fluid Bleed Wrench Set - 6pc
6pc Brake Bleed Wrench Set
Sizes : 7 | 8 | 9 | 10 | 11 | 12mm - 12 point
Combined Wrench / Socket and Nipple Connector.
Ideal for bleeding brake and hydraulic clutch systems without removing the wheels.
1.2M silicon hose with check valve for safety operating.
For universal bleeder nipples.
CT2367
Brake Fluid Bleed Kit - 2pc
2pc Pneumatic Brake Extractor / Refill Kit
Kit contains a vacuum fluid extractor, bleeding hose
and automatic refill bottle with New safety design.
Automatic shut off when the tank is full.
Working pressure : 70 -170psi
Air inlet : 1/4in.
Tank Capacity : 2.0L
Bottle Capacity : 1.0L
Air consumption : 5 cfm
CT4746
Brake Fluid Bleed System
Brake or Clutch Bleeding System
Suitable for use with ABS systems.
One-man bleeding system requiring no external power source.
2.5 litre tank allows flushing the entire system
with one fill without the risk of running the reservoir dry.
42mm diameter cap suitable for most European vehicles.
Working Pressure : 2 Bar / 30psi
Max. Pressure : 5 Bar / 70psi
NOW with 1 litre Suction Tank.
CT6228
Brake Fluid Bleed System - Electric
Electric Brake Fluid Bleeder
For most makes and models of vehicles
With Adjustable pulse oil change which can effectively
clean the pipeline and change the oil more thoroughly.
Contents : Brake Fluid Bleeder / 2L Bottle & 3.5M Hose / 3 Adaptors.
Power supply : 240V | 50 / 60Hz | 35W
Output Pressure : 0.6 - 3.0 Bar
Output flow : <= 1.2L / Min
Noise Level : 70 Db
Device shuts off when container is empty
CT3202
Brake & Clutch Pressure Test Kit
Brake and Clutch Master Cylinder Pressure Test Kit
Adaptors install directly into master cylinder access holes
Measures pressure at front or back of master cylinder
Pressure gauge 0 - 300 psi and is accurate to 4% of scale
JIC quick disconnect for easy connection
CT5863
Brake Piston Wind Back Adaptor Set
2 & 3 Pin Brake Piston Reset Adaptor Set
3/8in.Dr | Range : 20mm - 35mm with adjustable Pins.
For resetting the brake pistons with 2 / 3 or 4 grooves.
Universal - suitable for a variety of vehicle models.
Use a ratchet for easy rewinding of the Caliper piston.
Covers a range of vehicles including Electronic Park Brake models.

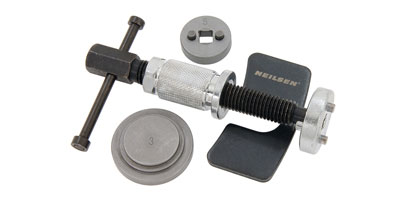

CT3234
Brake Piston Wind Back Set - RH
2 in 1 Brake Piston Rewind Tool Set
For use on disc brakes fitted to most cars.
Complete with 3/8in. square drive Reversible Adaptors.
With 22mm and 32mm Pins
Enables retraction of piston into the bore allowing new brake pads to be installed.
With Hex handle for use with a socket or spanner for extra torque.
Right handed thread brake Caliper rewind tool.
CT3942
Brake Piston Wind Back Tool - LH / RH
5pc Brake Caliper Piston Rewind Kit - 3/8in.Dr
With powerful internal spring
T-Bar : 150mm | Main Body : 110mm plus Reaction Plate.
Magnetic 2 pin adaptor with 5mm diameter pins - for any standard rewind adaptor.
Adjustable 2 pin adaptor with 3mm diameter pins
from 25mm to 34mm pin centres - for electronic park brakes.
Adjustable 3 pin adaptor with 3mm diameter pins
from 17mm to 30mm pin centres - for common brake Caliper applications.
CT4439
Brake Piston Wind Back Set - Universal
7pc Disc Brake Piston Rewind Tool Kit
Adjustable 2 pin adaptor fits most vehicles.
Adjustable 3 pin adaptor only to be used with
Electronic Park Brake / EPB tools.
Applicable to : Audi | B29 | BMW | Iveco Daily |
Renault | Range Rover | Seat | VW | Volvo
CT6395
Brake Piston Wind Back Kit - Iveco Trucks
7pc Brake Caliper Rewind Tool Kit
For resetting brake pistons on Iveco Truck disc brakes
Suitable for Iveco Stralis / Euro cargo / Daily
With : 10mm Ratchet Wrench
Magnetic Rewind Tool with Backing Plate
Reset Discs with 2 and 3 pins
8mm Hex Bits with 10mm drive
NOTE : 2 Pin Reset Disc is 3/8in.Dr
