Automotive Specialist Spanners
CT6923
Spanner Extender - 340mm
340mm Spanner / Wrench Extender
with 1/2in. Drive available in the handle.
Suitable for Spanners up to 26mm wide.
Provides extra torque for rusted nuts and bolts or stuck fasteners.
Also provides easy and safe leverage for over tightened nuts.
Universal head fits most spanners / socket wrench or hex keys.
CT5865
Spanner Extender - 385mm
385mm Spanner / Wrench Extender
Provides extra torque for rusted nuts and bolts or stuck fasteners.
Also provides easy and safe leverage for over tightened nuts.
385mm approx. for Maximum leverage for hard to reach spaces.
Universal head fits most spanners / socket wrench or hex keys.
CT6723
Spanner Organiser - Magneitc
Magnetic Spanner Rail Holder
With 15 non-scratch high power magnets
suitable for wrenches / spanners from 6mm to 21mm.
Made from lightweight anodized aluminium and ABS plastic
Suitable for use inside tool cabinets or on any metal surface.
Push button support hole.

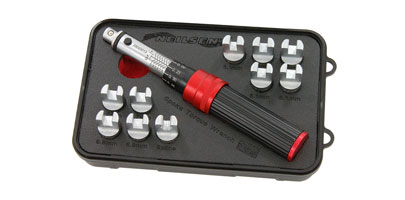

CT6852
Spoke Wrench Set - 11pc
11pc Motorcycle Spoke Wrench Set with Torque Wrench
Torque Wrench : 1 - 7Nm.
Interchangeable spoke wrench heads :
5.1 | 5.6 | 5.8 | 6.1 | 6.3 | 6.5 | 6.7 | 6.8 | 6.9mm & Spline type.
Designed to allow spokes to be replaced in accordance with the
wheel manufacturers specifications and set to the correct torque.
Incorrect spoke adjustment can lead to excessive radial or lateral run-out.
Applications include :
BMW | KTM | Ducati | Excel Rims and others
CT4604
Adjustable Pin Wrench Set
Adjustable Pin Wrench Set
with Interchangeable Pins
for nuts with top holes as found on Wheel Pulleys.
Divider type adjustment with central knurled knob.
Supplied with 8 pins / 4 pairs.
Pin size : 2.5 - 4mm | 3 - 5mm | 6 - 8mm | 7 - 9mm.
Plus 10 / 11mm Spanner.
Suitable for DIN 547 bearing nuts.
CT4631
Hook & Pin Wrench Set - 8pc
8pc Adjustable Hook & Pin Spanner Wrench Set
Jaw Range : 35 - 60 | 60 - 90 | 90 - 120mm
With interchangeable Hooks and Pin Lugs
Suitable for DIN 1804 and DIN 981 bearing nuts
For use on motorcycle suspension slotted retaining rings and
ideal for automotive / industrial / plumbing and hardware applications.
With 2 spare pins.

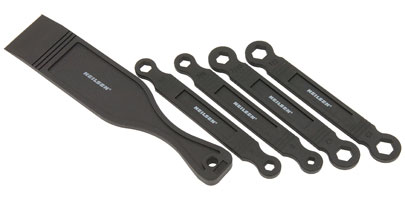

CT6996
Plastic Ring Spanner Set and Pry Bar
5pc Ring Spanner and Pry Bar Set
Heavy Duty Nylon Construction with
Pry Bar and 4 Double Ended Spanners
Sizes : 6mm | 8mm | 10mm | 12mm | 13mm
Sizes : 3/8in. | 7/16in. | 1/2in.
Suitable for classic cars and high quality vehicles.
Prevents damage to chrome-plated or anodised screws,
nuts, trim strips, ornamental rings, wheel covers, etc.
CT4010
Turbo Charger Wrench - 12mm VAG
VW / Audi Turbo Charger Wrench
12mm Double Hex - 12pt | 3/8in.Dr
Special wrench for use on diesel engines with
Turbo Chargers fitted to VW and Audi vehicles.
This offset wrench reaches underneath the turbo charger
to assemble or disassemble the 12mm bolts.
Applicable to VAG V6 TDI Diesel Engines
CT1377
Water Pump Wrench - 41mm
41mm Water Pump Wrench - 1/2in.Dr
For use on older GM - Vauxhall / Opel engines
where the water pump is used to adjust the camshaft belt tension.
Also used on Chevrolet / Daewoo vehicles.
Engines : 1.2 / 1.3 / 1.4 / 1.6V / 1.6D / 1.8
OEM Codes : KM421A | J-42492 | J-42492-A
CT4759
Brake Fluid Bleed Wrench Set - 6pc
6pc Brake Bleed Wrench Set
Sizes : 7 | 8 | 9 | 10 | 11 | 12mm - 12 point
Combined Wrench / Socket and Nipple Connector.
Ideal for bleeding brake and hydraulic clutch systems without removing the wheels.
1.2M silicon hose with check valve for safety operating.
For universal bleeder nipples.
CT4762
Rear Axle Locking Nut Spanner
Rear Axle Locking Nut Spanner
For loosening and tightening the wheel bearing grooved lock nut
when replacing wheel bearings on rear axle shafts or full floating axles.
Applicable to : Mercedes Sprinter / W901 - W905 rear axles.
Can be used with a 1/2in.Dr Ratchet or Power Bar.
CT5896
Rear Axle Locking Nut Spanner
Rear Axle Locking Nut Spanner
For removing and replacing the wheel bearing grooved lock nut
when replacing wheel bearings on rear axle shafts or full floating axles.
Applicable to : Mercedes Sprinter / W901 - W905 rear axles.
Can be used with a 1/2in.Dr Ratchet or Power Bar.
