10pc Socket Set - 1/2in.Dr
For special automotive applications -
With 3 | 6 and 10 Point Sockets and
10mm | 12.5mm | 14mm | 19mm Pentagon Sockets

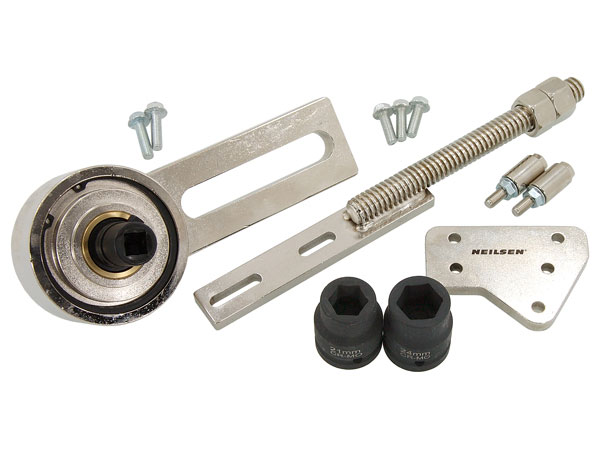

Torque Multiplier Set for Ford EcoBoost Engines
This torque multiplier set allows the correct mounting position and
correct tightening sequence to be applied to the crankshaft pulley bolts.
The torque multiplier has a gear ratio of 1:5.
The torque multiplier has a 1/2in.Dr input and 3/4in.Dr output.
The tool is mandatory when working on the following Ford engines :
1.0 EcoBoost
1.0 / 1.1 Duratec
2.0 Duratorq-TDCi
2.0 EcoBlue Diesel.

Adjustable Pin Wrench Set
with Interchangeable Pins
for nuts with top holes as found on Wheel Pulleys.
Divider type adjustment with central knurled knob.
Supplied with 8 pins / 4 pairs.
Pin size : 2.5 - 4mm | 3 - 5mm | 6 - 8mm | 7 - 9mm.
Plus 10 / 11mm Spanner.
Suitable for DIN 547 bearing nuts.

Cambelt Tension Gauge
Precise Measurement
Universal - Suitable for Cambelts of various widths
Dual Direction Rotating Scales with Clear Incremental Markings

Volvo Camshaft Belt Tool Kit
Used for the replacement of the camshaft drive belt
on popular Volvo 2.0L and 2.5L - 5 cylinder diesel engines.
Like - C30 | C70 | S40 | S60 | S80 | V40 | V50 | V60 | V70 | XC70 range.
With Crankshaft Pulley Holding Tool
Camshaft and Crankshaft Locking Pins

Belt Installation Tool
For Restricted Access to V style Timing Belts
600mm Reach

VAG Cambelt Pulley Holder
For VW 1.4 / 1.6 / 2.0 litre engines
Also for 4 valve engines with pin diameter 11.5 mm
and counter holding the belt pulley of 2 valve engines.
Applicable to : Audi / Skoda / VW vehicles

Timing Belt Tension Setting Tool Kit
for engine compartments with restricted access.
Ideal for releasing tension on serpentine belts.
Suitable for most vehicles.
3/8in.Dr x 580mm Long with 1/2in.Dr extension
3/8in.Dr Crowfoot Wrenches : 13 | 14 | 15mm
3/8in.Dr Sockets : 15 | 16 | 18mm

5pc Cambelt Tension Pulley Wrench Set
E-Star Sizes : E10 | E12 | E14 | E16 | E18
For biasing the auxiliary belt tension off and on
during installation of the belt in the vehicle.
Slim curved handle for use in confined spaces.

15pc Cambelt Tension Wrench Set
With Interchangeable Heads
for tensioners on auxiliary and timing pulleys.
Includes bar with locking system.
Star : E10 | E12 | E14 | E16 | E18
Sizes : 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19mm

9pc Cambelt Tension Wrench Set
with Interchangeable Heads
For tensioners on auxiliary and timing pulleys
Sizes : 12 to 19mm
Includes bar with locking system.

6 Belt Tensioner Retaining Pins
For use on Automatic Belt Tension Systems in vehicle engines.

1/4in.Dr Timing Belt Extension Tool
Range 8mm - 25mm
With 3mm Chrome-Vanadium Pins

Universal Camshaft and Crankshaft Pulley Holder
Holds camshaft or diesel pump sprockets and gears
for removal and tightening of retaining bolts.
Interchangeable pins : 3.5 | 4 | 4.5 | 5 | 6 | 7 and 10mm.
Wrench swivels to adjust from 32 - 127mm
1/2in.Dr for use with ratchets or power bars.

Citroen / Peugeot Petrol Engine Camshaft and Crankshaft Seal Installer Kit
Citroen / Peugeot Petrol 1900-2000

VAG Camshaft Adapter Socket
3/8in. Drive / S45C Steel.
Use to rotate and hold the intake camshaft during timing chain service
on 4 cylinder 1.8L and 2.0L TFSi generation III direct injection engines.

Camshaft Belt Pulley Tool
Mini Cooper Serpentine Belt Tool - R50 / R53
For loosening the camshaft pulley then using the
pin to lock the camshaft pulley tensioner in place
allowing the removal and replacement of the timing belt.
Applicable : BMW Mini Cooper - R50 / R53
BMW engine W10/W11

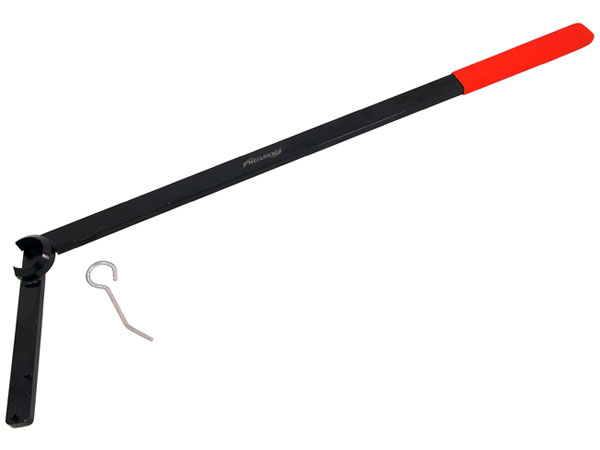

Camshaft Belt Pulley Tool
Mini Cooper Serpentine Belt Tool
For loosening the camshaft pulley then using the
pin to lock the camshaft pulley tensioner in place
allowing the removal and replacement of the timing belt. br> Applicable : BMW Mini Cooper engine S/W11

Exhaust Camshaft Holding / Adjusting Tool
for EB2ADTS Engines in
Citroen / Opel / Peugeot / Toyota Vehicles
Suitable for the following engine codes:
EB2ADTS | HNS | D12XHT | F12XHT
OEM Codes : 2000037072
0109-2E / 0109-2E1 | 01092E / 0109-2E2

5pc Master Cam Clamp Kit
This universal kit reduces repair time and covers
most Single / Twin and Quad cam engines.
Locks camshafts during belt replacement.
Prevents engine damage due to incorrect timing.
Allows easy operation in small engine bays.

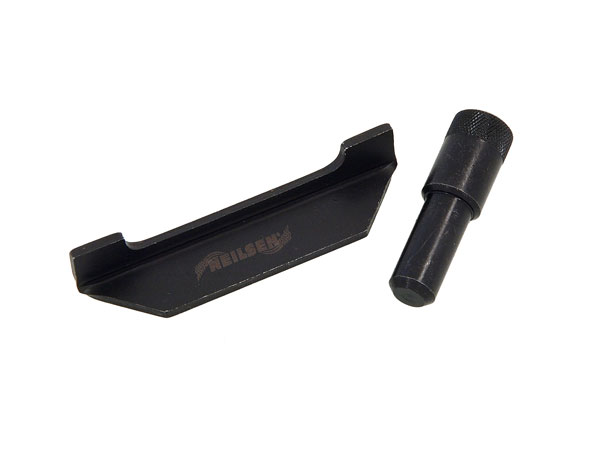

Camshaft Locking Tool
for Audi | Ford | Seat | Skoda | Volkswagen | Volvo
Essential for setting and locking the camshaft
and crankshaft when changing the timing belt.
Includes :
Setting spigot OEM ref.23-047/2064
Setting bracket OEM ref.21-105/2065A

VW R2/T4/A3 Camshaft Pulley Puller
Ideal for removing rusted or seized pulleys.
For in-situ car maintenance.
Adjustable legs fit different diameters of pulley.
VW T4 use six hook
AUDI A3 use five hook
R2 use six hook

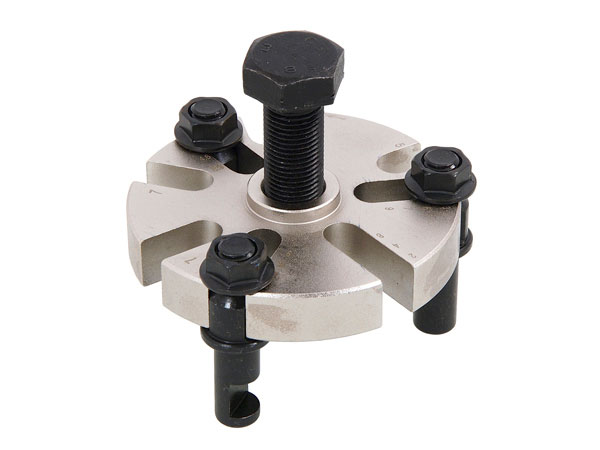

Universal Pulley Puller
18mm pulling legs.
8 Slots for holding pulling legs in different positions.
16mm Diameter spindle with cantering ball.
Use with 24mm Socket or Spanner.
Draws pulley by the holes without causing damage.
Movable legs adapt to different pulley diameters.
Suitable for different bolt patterns and distances.

Adjustable Timing Pulley Puller
This tool is designed for removing drive pulleys with face grooves.
Removes pulleys without risk of damage.
Adjustable Legs for different pulley diameters.
For removing pulleys with 3 | 6 | 9 slots.

BMW Camshaft Vanos Socket
22mm / 16pt / 1/2in.Dr
For installing and removing the BMW MINI Vanos unit.
Also the Ford VCT module.
Applicable to : BMW MINI 1.2 / 1.5 / 2.0 L petrol
B36 | B38 | B48 | B36 | B38 | B46 | B48 | B58
M1DA | M1DC | M1DD | M1DH | M2DA | M2DB | M2DC
Ford 1.0 Ecoboost / SFDB.
OEM Codes : 2450487 | 303-1661-3
Chrome-Molybdenum

High Pressure Pump Sprocket Remover
For removing the diesel fuel pump sprocket on
Hyundai and KIA chain drive CRD diesel engines
found on 1.1 | 1.4 | 1.5 | 1.6 | 1.7 litre models.
OEM Code : 09331-2A000

VAG Fuel Pump Sprocket Puller
For the removal of the high pressure pump sprocket.
on 1.6L and 2.0L TDi common rail diesel engines.
Also for removing the Pump Pulley on
1.6 / 2.0 - 6 cylinder TDi common rail diesel engines
OEM Code : T40064

12pc TDC Locator / Finder Set
For the accurate setting of the TDC point during timing belt
replacement or cylinder head disassembly or seal replacement.
Contents :
Hose
Hooks with Magnet
Measuring Pipe
3 x Lengthener with Connection Pipe
6 x Adaptors : 8 | 10 | 12 | 14 | 18mm diameter and Cone Adaptor
Features an aluminium extension for use in deep ignition chambers.

Timing Gear Puller
Removes Timing Gears and other gears with tapered holes

Engine Timing Light Gun
For checking and adjusting the ignition timing.
Suitable for all 12V petrol engines where it is possible to adjust the ignition timing.
Ignition signal via cable of first cylinder.
Bright stroboscopic light allows good readability of the ignition timing mark.
Features include xenon bulb and inductive pick-up.
Impact resistant housing with on / off trigger

Timing Light with Digital Display
Voltage : 12V / 10W.
Stroke select function.
Test rotation speed and advance angle.
Max Test Angle : 90 degrees
Precision : 0.1 degrees

BMW / Mini Camshaft Drive Chain Wear Indicator
For checking the timing chain stretch on BMW Mini petrol engines
without dismantling the engine.
Applicable to Mini Clubman / Club Van / Countryman / Coupe
Paceman and Roadster with 1.4L and 1.6L engines.
Also useful on equivalent PSA engines.
OEM Code : 2353281

16pc Universal Timing Tool Set
with Camshaft / Crankshaft Locking Tools
for Diesel and Petrol Engines.
Suitable for carrying out timing belt servicing on :
Audi / Citroen / Fiat / Ford / Isuzu / Peugeot / Rover / Saab / Seat / Skoda / Vauxhall / VW

19pc Universal Timing Tool Set
For Locking and Setting Timing when replacing timing belts
Camshaft Lock
Crankshaft Pin & Locking Tool TDI Pump Nozzle
Flywheel Locking Tool
Locking Pins : 5.0mm diameter
Locking Pin : 6.1 mm diameter
Balancing Shaft Locking Pin : 7.3mm / 6.1mm diameter
Suitable for most vehicles

Universal Twin / 4 Cam Lock
For Petrol and Diesel Engines
Locks twin camshafts to timing marks during timing belt replacement
Suitable for locking between cam and diesel injection Pump sprockets

Sonic Belt Tension Tester
Portable Flexible Probe Tester
Frequency Range : 10 - 600Hz
Includes 20 Memory / Data Storage Settings.
Automatic Power-off when no operation for 5 minutes.
Power off by pressing ON / OFF switch for 2 seconds.
Power Source : 2 AAA battery / not included.

BMW Timing Tool Set
BMW Engine Camshaft Alignment Tool Kit
To enable the correct timing when servicing
N40 / N42 / N62 / N62TU / N73 engines with dual camshafts.
Gauges for locating camshaft in TDC position
Pin for locking flywheel in TDC position

Fiat / PSA 1.3 JTD Diesel Engine Camshaft Tool
For use on the popular 1.3 JTD Multi-Jet diesel engine
found in Fiat Group / Ford / GM and PSA vehicles.
Used to hold the camshaft while loosening or tightening fixings.
Designed to be used with a 1/2in.Dr ratchet or power bar.
Recommended for use with CT4058 Timing Tool Kit
OEM Codes : 303-1475 | 1871008600

Timing Belt Tensioning Tool
Universal Tensioner for a simple way to tension the timing belt
on GM engines fitted to Alfa Romeo / Fiat / Lancia / PSA / Saab and Suzuki.
Applicable to 1.6L / 1.9L / 2.0L / 2.4L diesel vehicles.

Ford Camshaft Sprocket Puller
Size 90 x 65mm
Applicable to - F8M | F8Q | S8U | S9U
Also suitable for removing the Impeller.
Also found in Timing Tool Set CT3429

Ford Rear Camshaft Pulley Installation and Removal Kit
for Ford and Mazda V6 Engines
Specifically for removing and reinstalling the rear camshaft pulley
which connects to the water pump during servicing.
Applicable to : Ford / Mazda 2.5L | 3.0L V6 engine.

Camshaft Setting Bridge
for 1.0 Wet Belt Non Turbo / Ford Petrol
Application : Ford Fiesta from 2013.
Engine codes :
P4JA | P4JB | P4JC | P4JD | XMJA | XMJB | XMJC | XMJD.
OEM Code : 303-1605
Use with components from any of CT7206.

Variable Camshaft Sprocket Locking Tool
for Ford 1.5L Sigma i4
For locking the two camshaft sprockets together
when setting the engine timing.
Suitable for :
Ford Escape equipped with 1.5L EcoBoost
132kW/180PS / i4 - M9 model years 2017, 2018, and 2019.
Ford Fusion equipped with 1.5L EcoBoost
118kW/160PS / i4 - UN Model Years 2013 up to 2020.
OEM Code : 303-1774

Ford Camshaft Setting Tool
for Ford 1.6L EcoBoost Petrol Engines.
For locking the camshaft when servicing the timing chain.
Applicable to the Sigma 1.6L EcoBoost 2010 onwards.
OEM Code : 303-1552

Hyundai / Kia Belt Tension Compression Tool for Hybrid Vehicles
Essential tool for compressing the very tight belt tensioner
on the hybrid starter generator / HSG.
With compression control tube preventing
1.6L GHEV engines to be over compressed.
Applicable Vehicles :
Loniq / Kona / Niro / Optima / Xceed | 1.6L - 2.0L Models
OEM Codes : 09244-G21000 | 9252-2E100.

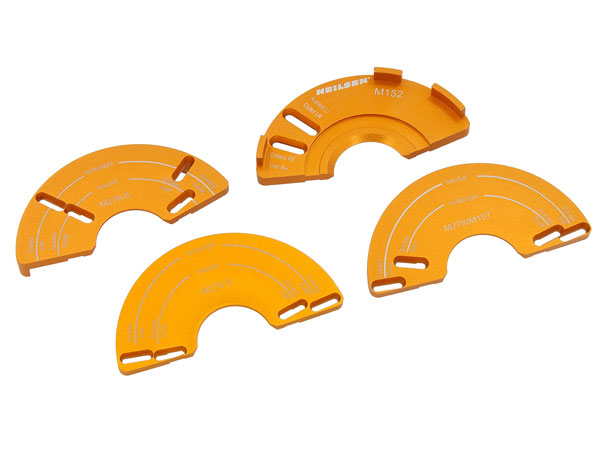

4pc Camshaft Adjuster Set
for Mercedes V6 / V8 - M152 / M157 / M276 / M278 Vehicles
Camshaft Position Sensor Reluctor Setting Tools
Used to mark pulse wheel on removed camshaft.
Can be used in conjunction with CT4076
OEM Code : 278589002300

Vauxhall / Opel / GM / Saab Timing Tool Set
For 2.0 | 2.4 Turbo Charged Twin Cam Petrol Engines.
Timing Chain removal and replacement kit with -
Camshaft Adjuster and Flywheel Holding Tool
Tension Plunger Reset Tools
Used in Chevrolet / Opel / Saab / Vauxhall vehicles 2008 - 2015

Cam Belt Tensioning Tool
T50 Star Bit - 1/2in.Dr
Allows access to the tensioner adjuster on
Renault K4M / K4J 1.4 and 1.6 petrol engines.
May be used with 1/2in.Dr Adaptor and Ratchet
OEM Code : MOT1368

Camshaft Sprocket Locking Timing Tool Set
for Renault 1.8 / 2.0 F4 16V Vehicles -
Laguna II / 2001 - 2009
Megane II / 2002 - 2009
Scenic / 2002 - 2009
Engine Codes : F4P | F4R
OEM Codes : MOT1509-01 | 1509.

VAG Camshaft Adjuster Sockets - 3/8in.Dr
For the camshaft adjustment of 4/3-way central valve.
Fitted to : Audi A3 | A4 | A5 | Q5 1.8
and VW 2.0 litre engines with chain drive

VAG Timing Tool Set
For Jetta / Santana / Gran Lavida / Golf 7
Locks camshaft when checking and adjusting timing
1.0 MPI and 1.0 MPI / GNC Petrol Engines
With Crankshaft Locking Bolt
Camshaft Adjusting plate
Camshaft Sprocket Locking Tool
Tension Adjusting Wrench
Assembly Tool

VAG Camshaft Spacer Set
2 sizes of spacers for locating
the AVS spline ends on the camshaft.
For Audi A4 2008 | Q5 2009
4 cylinder petrol injection 2.0L turbo engine
OEM Code : T40191

VAG Camshaft Locking Tools
for belt driven Audi 3.6 V8 and 4.2 V8 Petrol Engines
- manufactured between 1988 to 1997.
Specially designed camshaft timing tools for adjustment,
installation or removal of the cam belt on Audi engines.
Codes 3.6 V8 / PT and 4.2 : AEC | ABH | AHK.
Suitable for Audi : 100 | S6 | V8
OEM Code : VAG 3199

VAG Camshaft Locking Tool
Applicable to -
VW | AUDI 1.4 / 1.6L
VW Lupo | Polo | Golf IV | Bora / Audi A2 vehicles
OEM Codes : T10016 | T10074

VAG Adjustable Camshaft Locking Tool
for VW 12 - 30 Valve vehicles.
For precise assembly of the auxiliary belt
avoiding distortion of the camshaft.
Adjustable camshaft locking strap will hold the twin cams in place.
OEM Codes : 3391 | 3242 | 3243

VAG V6 Camshaft Alignment Tool
Applicable to 1995-2004
new body style VW and AUDI models.
OEM Code : VAG 3391

VAG V6 Camshaft Alignment Tool
Essential tool for locking and setting the camshaft
and crankshaft during timing belt replacement.
With Mounting Bracket for difficult access.
Applicable to :
Audi : 80 | A4 | Coupe | Cabriolet | A6 | A8
VW V6 engine codes : ABC | AAN

VAG V8 Camshaft Alignment Tool
Designed to align the camshafts at TDC position
when adjusting and assembling.
Applicable to VAG V8 5-valve engines.
OEM Code : T40005

VAG Camshaft Alignment Set
Specially designed to set the Camshaft in the correct position for servicing.
Audi - A4 / A6 / A8 / A11 ( 97 - 04 )
VW - Passat ( 98 - 04 )

VAG Camshaft Drive Belt Sprocket Puller
For removing the camshaft sprockets
on a variety of VW and Audi camshafts.
Includes 17mm and 23mm pulling arms.
OEM Code : T40001

VAG Camshaft Holding / Alignment Tool Kit
for Audi A4 | A6 | A8 - V6 3.0 Petrol Engines
With Camshaft Locking Tool
Crankshaft Retainer Tool
Tensioner Pulley Wrench
Used for timing belt replacement and engine repair.

Engine codes : ASN | AVK | BBJ

OEM Codes : 3387 | T40011 | T40026 | T40028 | T40030

VAG Tensioner Wrench
Multi-position timing belt tension wrench for
Volkswagen | Audi | Skoda | Seat vehicles.
5 variable positions for extra easy use.
Suitable for both petrol and diesel engines.

VAG Crankshaft Rotation Tool
for VAG 5 Cylinder Engines
Necessary for crankshaft adjustment and as use as a lever.
Suitable for all 5 cylinder VW diesel engines -
VW touareg as of 2003 and transporter as of 2004
Fixing screw allows easy mounting on crankshaft.
OEM Code : T10225

VAG Camshaft Sprocket Locking Tool
VAG 1.0L TSI 3 cylinder petrol engines
For locking the camshaft in position during engine timing and servicing.

OEM Code : T10476
Common to : CT4424 | CT4622 | CT4651

VAG Camshaft Pulley Holding Tool Set
For holding the pulleys and sprockets on the
camshaft / crankshaft / oil pump and water pump
while loosening and tightening the fixing bolts.
also suitable for the Common-Rail Diesel Pump-Nozzles
Suitable for Audi | Seat | Skoda | Volkswagen models.

Camshaft Drive Tensioner Wrench
For adjusting the Camshaft drive belt tensioner on
VAG Vehicles with 1.0 / 1.2 / 1.4 turbo charged engines.
Applicable to :
Audi - A1 / A3
Seat - Mii / Leon
Skoda - Octavia / Citigo
Volkswagen - Up / Golf V11
OEM Code : T10499

VAG Timing Tool Set
for VAG 1.4 TFSI and 1.6 FSI Petrol Engines
To check and adjust camshaft timing
required when replacing timing chains.
With Camshaft Locking Tool
and Setting Gauge Holder.

VAG Timing Chain Tension Lever
for 1.8 / 2.0 TFSi Petrol Engines
Allows the timing chain tensioner to be retracted and locked
without removing the lower timing cover.
Applicable to TFSI engines from 2007 onwards
on Audi / Seat / Skoda / Volkswagen models.
OEM Code : T40243

VAG Crankshaft Seal Ring Installation Tool
for VAG and Porsche 3.0TDi Engines
For assembling the front radial seal ring on the crankshaft.
Suitable for vehicles with VAG 3.0TDi engines:
Porsche - Cayenne
VW - Touareg | Phaeton
Audi - A4 | A5 | A6 | A8 | Q5 | Q7

Water Pump Tester Kit
For testing cooling system water pumps in situ while the engine is running.
Indicates the coolant flow by measuring pressure rises
that occur due to the coolant flowing around the block.
Gauge : 0 - 15psi
Rubber Pipe Seals and Blanking Plugs
2 part Pipe Connector Body
2M Nylon Hose and Male Connector

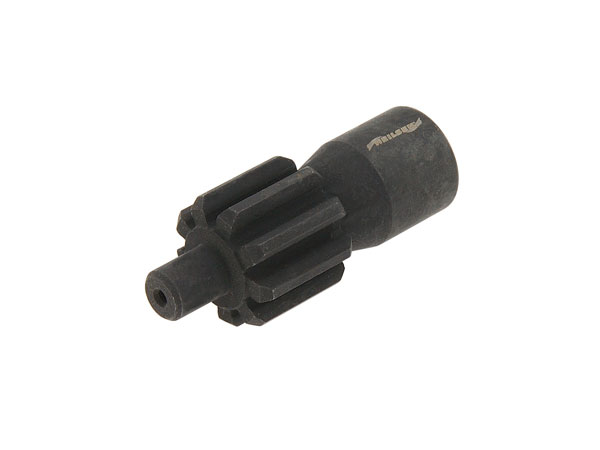

DAF Commercial Vehicle Crankshaft Alignment Tool
This heavy duty tool allows crankshaft rotation via the flywheel.
6 point drive x 24mm x 11 teeth
Applicable to 35T DAF trucks :
65CF | 75CF | 85CF | 95XF | CF75 | CF85
F65 | F75 | F85 | F95 | XF95

DAF Engine Crankshaft Alignment Tool
1/2in. Drive
For manually rotating the engine crankshaft into position.
Applicable to : DAF XF105 / Euro5

MAN Engine Crankshaft Alignment Tool
1/2in. Drive
Length : 61mm
Allows the engine crankshaft position to be manually rotated.
Applicable to : MAN engines D20 | D25 | D26 | D28

MAN / Mercedes Crankshaft Alignment Tool
120mm Deep | 1/2in. Drive
Allows the engine crank to be manually adjusted.
Allows pinpoint accuracy calibration.
Adjusting screw in the clutch housing
Triple gear construction
Applicable to :
Mercedes Benz Actros / Atego
MAN 5-/6- and 8-cylinder engines - D25 / 28 etc.

Crankshaft Seal Ring Assembling Tool
for Scania 114 commercial vehicles and trucks.
For damage free installation of the rear crankshaft seal ring.
Applications : Scania / 114 - 340 / 360 / 380.
Suitable for seal rings : 140 x 160 x 12mm
OEM Code : 1433183

Scania Engine Crankshaft Alignment Tool
1/2in. Drive
For manually rotating the engine crankshaft into position.
Applicable to : Scania Trucks up to 1996
OEM Code : 99309

Volvo Crankshaft Rotating Tool
1/2in.Dr
For rotating the crankshaft on commercial vehicles via flywheel ring gear.
Applicable to : Volvo 6L and 12L.
Engines : D9A | D12 | D16C and FM 360 8x4.
OEM Code : 9996959
