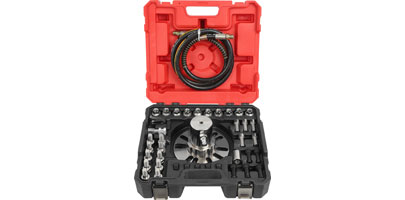

10T Hydraulic Wheel Hub Removal Kit
For separating the transmission shaft from the hub.
Hydraulic cylinder head - up to 10-tonne capacity.
High-pressure Hose and Five-hole Hub Axle Plate.
Extension screws : 5 x M14 x 1.5 | 5 x M12 x 1.5.
Screws : 5 x M14 x 1.25 | 5 x M14 x 1.5.
Nuts : 5 x M14 x 1.25 | 5 x M14 x 1.5.
Magnetic spacer plates.
Extension adaptor.
Quick-connect coupler.
The plate is secured to the wheel bolt threads, and a central bolt is used to apply controlled force, pushing the drive shaft out of the hub safely and efficiently. To operate the tool, select the appropriate output shaft adaptor to suit the central screw and secure it into the transmission shaft. Position the frame, tighten the retaining nut, and install the pulling screw to draw the wheel hub towards the drive shaft. This method ensures controlled, safe, and effective separation.
